Features
Light Source : High luminous efficiency LED lamp beads,LM80 test certification
- Process Material : High light transmittance,high purity silica gel matterial,IP68 protection level
- •Optical Design : Unique optical light distribution structure design,24 degree light output uniformly
- Appearance design : Skin-friendly surface treatment,comfortable touch,good flexibility and simple shape
- Product certification : UL,CE,ROHS,CB
- Environmental characteristics : Salt solution resistance,acid and alkali corrosion resistance, flame retadant resistance,UV resistance
- Working/Storage temperature : Ta – -25 -~55 degree C / 0~60 degree C
- Symphony working/storage temperature : Ta -20~40 degree C / 0~60 degree C
- Product application : Under water,Building Elevation,Office lighting, decorative lighting & Etc
Specifications
Power Voltage : 15W/Meter
Power Factor : 24v DC
LED colors : White 6000-6400k, Neutral Light 4000-4500k, Warm Light 2700-3000k
Lumen Flux : 120 – 140 lm/W
Dimension : W-30mm
Driver: External
Operating Temp
CRI : > 85
IP Rating : IP68
Angle : 24º
Dimmable (optional) :
Colour tunable (2700 K – 6000 K), DALI, Edge pulse/0/1-10 V dimming control

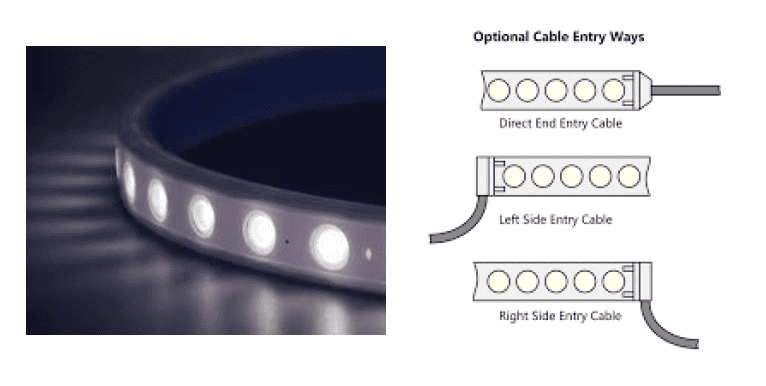

Application

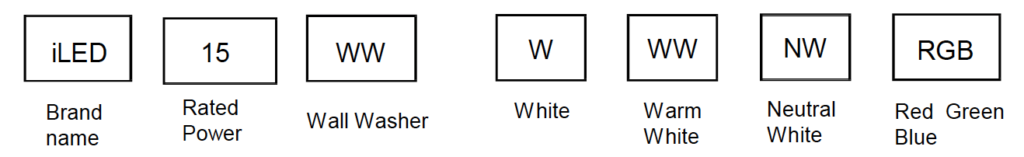

Ordering Information
